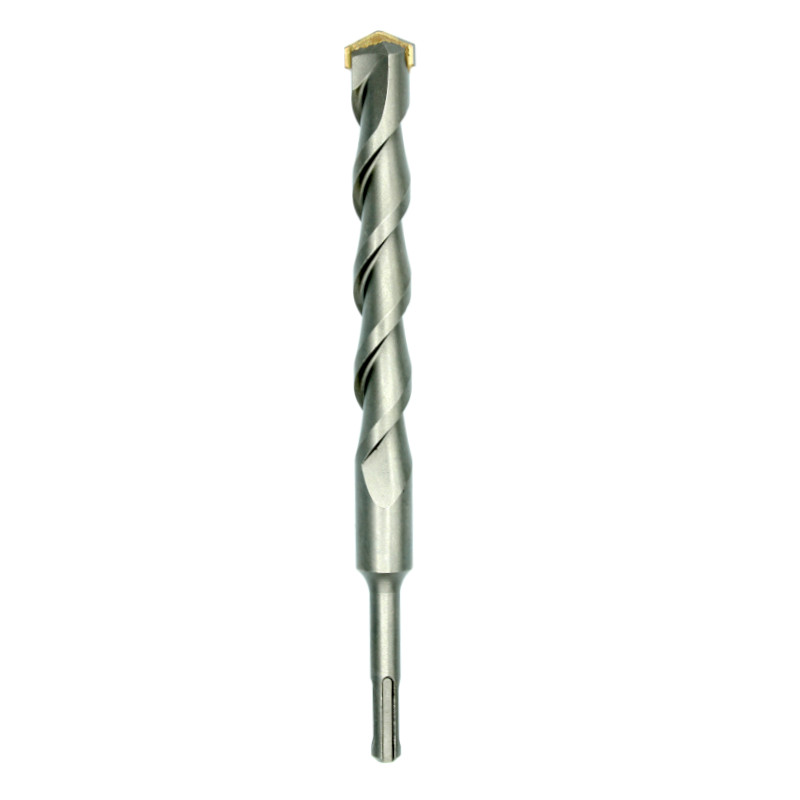

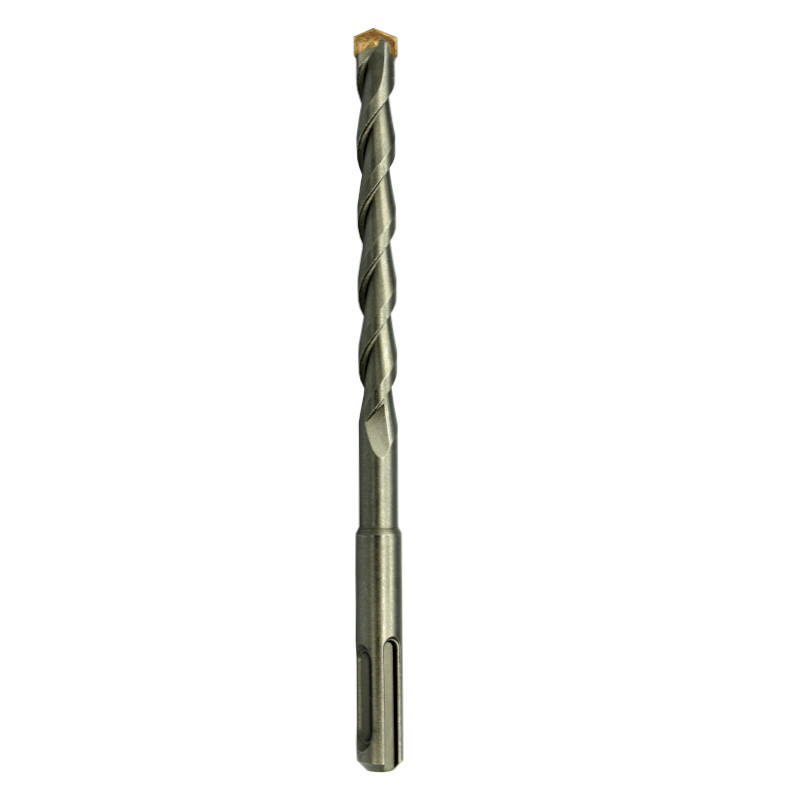

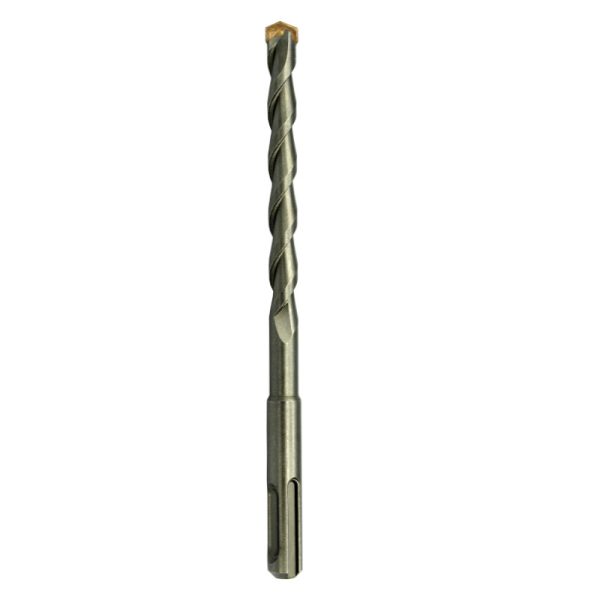

SDS Plus Rotary Hammer Drill Bit (102 series)
- Industrial Grade drill bit for professionals
- Perfect for heavy duty hammer drilling in concrete, tile, brick, and masonry materials
- Heat-treated, heavy duty steel alloy body with spiral flutes
- Tungsten carbide tipped with a single cutter
- Precision grounded from solid one piece design for exact specifications to ensure accurate holes
- 3/8″ SDS PLUS shank allows for a sliding back and forth action with rotary hammer chucks and these bits can be pushed into spring loaded chucks
Please indicate the desired quantities.
Industrial grade SDS plus rotary hammer drill bit is perfect for heavy duty drilling in brick and concrete. Heat-Treated high speed steel alloy body with a carbide tip allow for high shock resistance. 3/8″ SDS plus shank fits all popular hammer drill machines.
| Cutting Diameter (IN.) | Overall Length (IN.) | PART NUMBER | UPC NUMBER 722170- |
| 3/16″ | 4″ | 102.04.0316 | 10201 |
| 1/4″ | 4″ | 102.04.0416 | 10206 |
| 3/16″ | 6″ | 102.06.0316 | 10202 |
| 1/4″ | 6″ | 102.06.0416 | 10207 |
| 5/16″ | 6″ | 102.06.0516 | 10210 |
| 3/8″ | 6″ | 102.06.0616 | 10212 |
| 7/16″ | 6″ | 102.06.0716 | 10216 |
| 1/2″ | 6″ | 102.06.0816 | 10219 |
| 9/16″ | 6″ | 102.06.0916 | 10223 |
| 5/8″ | 6″ | 102.06.1016 | 10226 |
| 3/16″ | 9″ | 102.09.0316 | 10203 |
| 1/4″ | 9″ | 102.09.0416 | 10208 |
| 5/16″ | 9″ | 102.09.0516 | 10211 |
| 3/8″ | 9″ | 102.09.0616 | 10213 |
| 1/2″ | 9″ | 102.09.0816 | 10220 |
| 5/8″ | 9″ | 102.09.1016 | 10227 |
| 3/4″ | 9″ | 102.09.1216 | 10230 |
| 7/8″ | 9″ | 102.09.1416 | 10233 |
| 1″ | 9″ | 102.09.1616 | 10236 |
| 3/16″ | 12″ | 102.12.0316 | 10204 |
| 1/4″ | 12″ | 102.12.0416 | 10209 |
| 5/16″ | 12″ | 102.12.0516 | 10239 |
| 3/8″ | 12″ | 102.12.0616 | 10214 |
| 7/16″ | 12″ | 102.12.0716 | 10217 |
| 1/2″ | 12″ | 102.12.0816 | 10221 |
| 9/16″ | 12″ | 102.12.0916 | 10224 |
| 5/8″ | 12″ | 102.12.1016 | 10228 |
| 3/4″ | 12″ | 102.12.1216 | 10231 |
| 7/8″ | 12″ | 102.12.1416 | 10234 |
| 1″ | 12″ | 102.12.1616 | 10237 |
| 3/8″ | 18″ | 102.18.0616 | 10215 |
| 7/16″ | 18″ | 102.18.0716 | 10218 |
| 1/2″ | 18″ | 102.18.0816 | 10222 |
| 9/16″ | 18″ | 102.18.0916 | 10225 |
| 5/8″ | 18″ | 102.18.1016 | 10229 |
| 3/4″ | 18″ | 102.18.1216 | 10232 |
| 7/8″ | 18″ | 102.18.1416 | 10235 |
| 1″ | 18″ | 102.18.1616 | 10238 |
| 3/8″ | 24″ | 102.24.0616 | 10243 |
| 1/2″ | 24″ | 102.24.0816 | 10241 |
| 5/8″ | 24″ | 102.24.1016 | 10244 |
| 3/4″ | 24″ | 102.24.1216 | 10242 |
