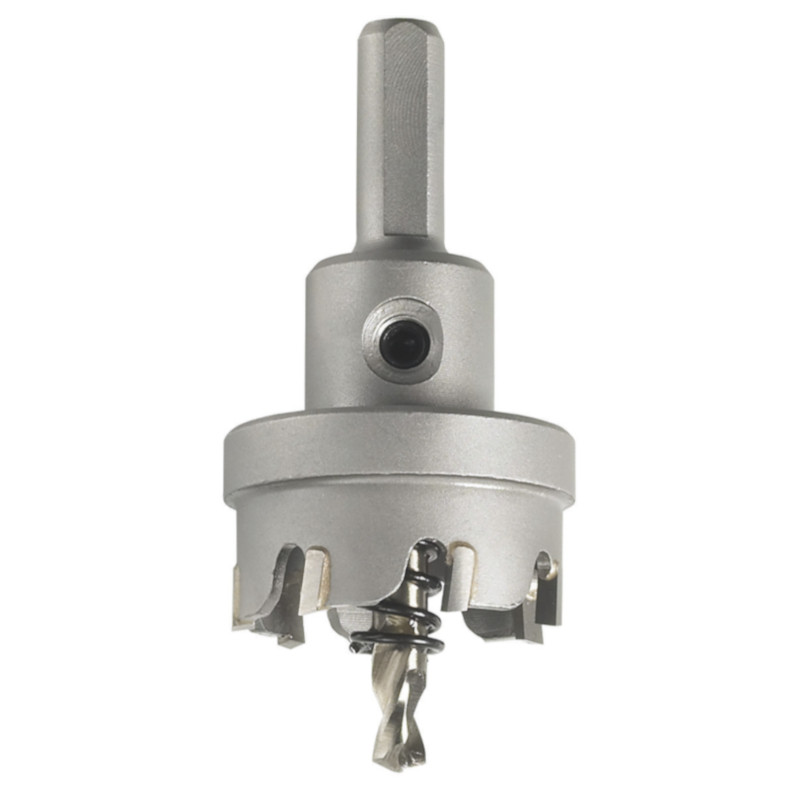

Tungsten Carbide Tipped Hole Cutter side view (626 series)

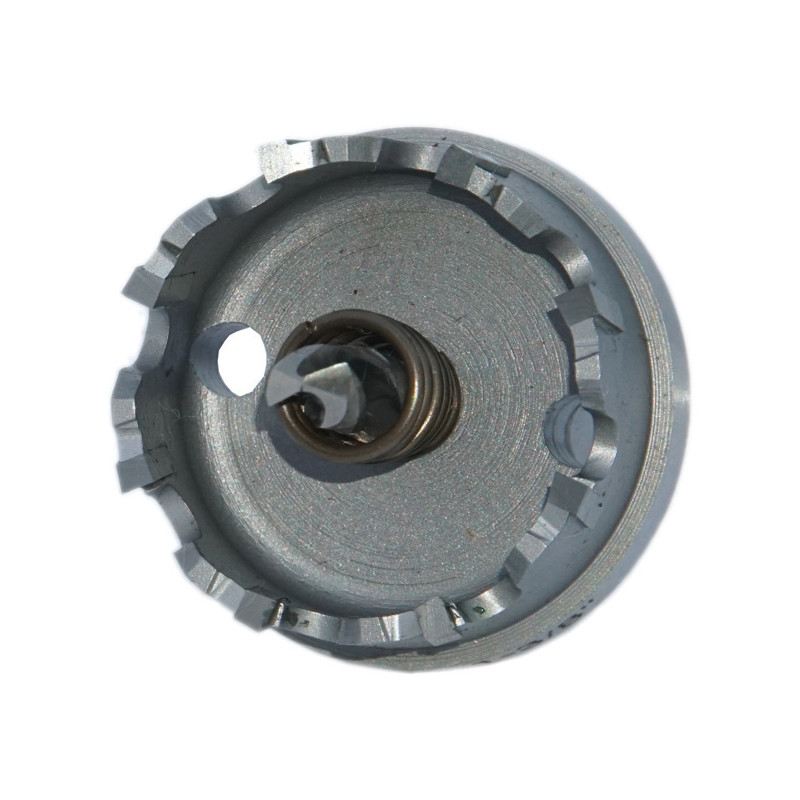

Tungsten Carbide Tipped Hole Cutter front view (626 series)
SKU 626. Category

Tungsten Carbide Tipped Hole Cutters (626 series)

  • Industrial grade hole cutter for professionals
  • Heavy Duty Steel Alloy backing and body
  • Tungsten Carbide Tipped teeth cuts thin metal, copper, iron, stainless steel and etc.
  • Cuts up to 7/16″ deep holes
  • Spring loaded ejecting slug on pilot bit instantly removes heat and debris upon drilling
  • HEX SHANK with 3 Flats



WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Ask a Question
Request a Quote

Carbide Tipped Hole Cutters makes burr-free holes in sheet metal, copper, iron, stainless steel, and metal junction boxes. Heat-Treated Steel Alloy body and backing. Tungsten Carbide tipped cutting edge and ejecting spring on pilot bit instantly removes debris while drilling. 7/16″ cutting depth

Diameter (IN.) Diameter (MM) Shank Size (IN.) PART NUMBER UPC NUMBER 722170-
11/16″ 17 mm 7/16″ 626.1116 62603
3/4″ 19 mm 7/16″ 626.1216 62604
7/8″ 22 mm 7/16″ 626.1416 62606
1″ 25 mm 7/16″ 626.1616 62608
1-1/16″ 27 mm 7/16″ 626.1716 62609
1-1/8″ 29 mm 7/16″ 626.1816 62610
1-3/16″ 30 mm 7/16″ 626.1916 62611
1-1/4″ 32 mm 7/16″ 626.2016 62612
1-5/16″ 33 mm 7/16″ 626.2116 62613
1-3/8″ 35 mm 7/16″ 626.2216 62614
1-7/16″ 37 mm 7/16″ 626.2316 62615
1-1/2″ 38 mm 7/16″ 626.2416 62616
1-3/4″ 45 mm 7/16″ 626.2816 62620
2″ 51 mm 7/16″ 626.3216 62623
2-1/8″ 54 mm 7/16″ 626.3416 62625
2-1/4″ 57 mm 7/16″ 626.3616 62626
2-3/8″ 60 mm 1/2″ 626.3816 62628
2-1/2″ 64 mm 1/2″ 626.4016 62629
2-5/8″ 67 mm 1/2″ 626.4216 62631
2-3/4″ 70 mm 1/2″ 626.4416 62632
3″ 102 mm 1/2″ 626.4816 62634
